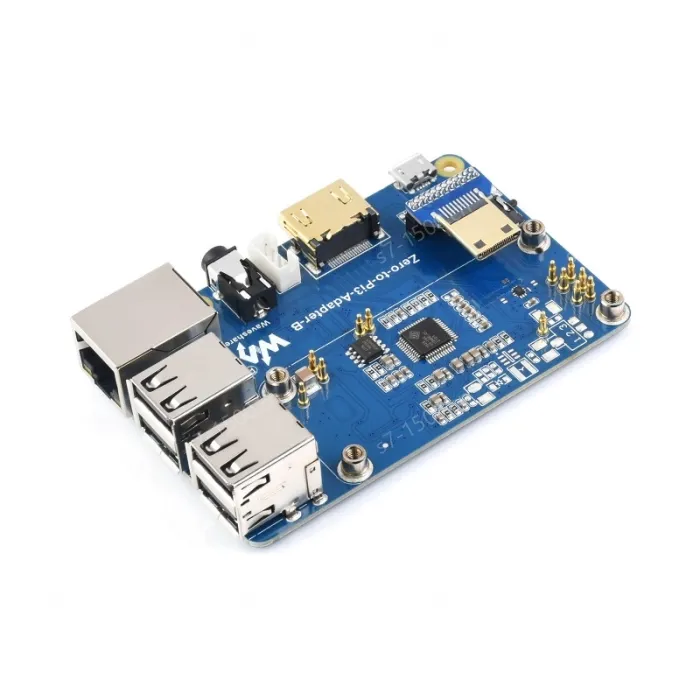

Raspberry Pi Zero 2W To 3B Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+
Raspberry Pi Zero 2W To 3B Adapter
Alternative Solution for Raspberry Pi 3 Model B/B+
Features at a glance
- Using pogo pin connection, the Zero 2W can be easily attached
- Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
- Onboard headphone jack(extended from USB) and an additional speaker header
- Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
- Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive
- Not compatible with the first generation Zero
Based on Raspberry Pi 2W
Use Pi Zero 2W to reproduce the original appearance of the 3B series as much as possible
More Cost-effective Choice
for reference only, Pi Zero 2W is NOT included
Easy to Install
Using pogo pin connection, the Zero 2W can be easily attached
for reference only, Pi Zero 2W is NOT included
Interface Introduction
Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port
Note: The Ethernet port does not support PoE function
Compatible with Pi 3B Series HATs
Easy access to Pi 3B series HATs or other development projects
Note: the height of the GPIO is higher than the Pi 3B / 3B+
for reference only, Pioneer600 and Pi Zero 2W is NOT included.
Onboard Audio Interface
Support 3.5mm headphone jack and 4PIN speaker header
When headphone is plugged in, the speaker will be automatically disabled.
for reference only, Pi Zero 2W and speaker is NOT included
Outline dimensions
Raspberry Pi 3B / 3B+ Alternative Solution
Selection Guide
Selection Guide
| PART NUMBER | GPIO | USB | Ethernet Port | Headphone Jack | CSI | HDMI | DSI | TF Card Slot |
|---|---|---|---|---|---|---|---|---|
| 3B/3B+ | 40PIN | 4-ch | 100M | √ | √ | √ | √ | √ |
| CM4-to-Pi3-Adapter | 40PIN | 4-ch | 1000M | √ | √ | √ | √ | √ |
| CM4-to-Pi3-Adapter-B | 40PIN | 4-ch | 1000M | √ | √ | √ | √ | √ |
| Zero-to-Pi3-Adapter (A) | 40PIN | 4-ch | 100M | - | - | √ | - | √* |
| Zero-to-Pi3-Adapter (B) | 40PIN | 4-ch | 100M | √ | - | √ | - | √ |
| * Indicates that will use the original interface of the Pi. | ||||||||
