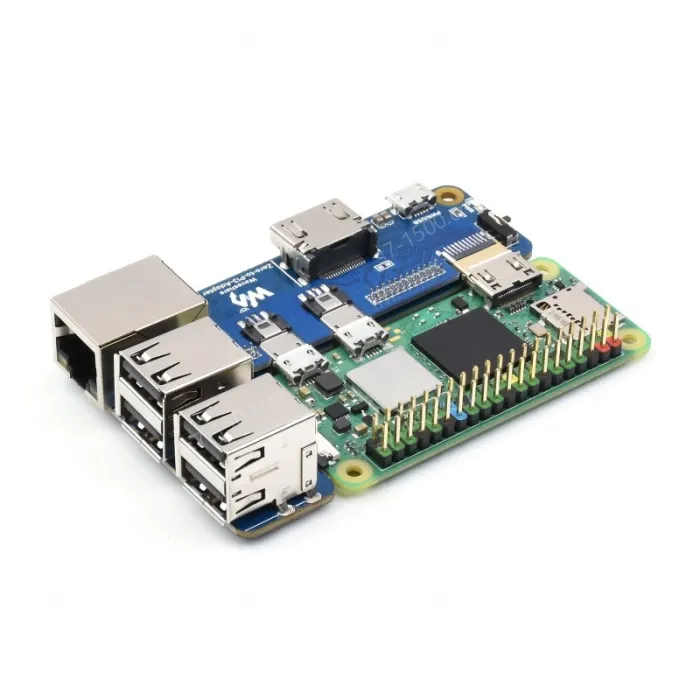

Raspberry Pi Zero To 3B Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+
Raspberry Pi Zero To 3B Adapter
Alternative Solution for Raspberry Pi 3 Model B/B+
Features at a glance
- Zero can be easily attached via specially designed connectors
- Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
- The same GPIO header height as 3B, easily connecting with 3B series HATs or development projects
- Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
- Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive
Based on Raspberry Pi Zero
Use Zero To Reproduce The Original Appearance Of The Pi 3B Series As Much As Possible
More Cost-effective Choice
Connect to Zero
Connect to Zero 2 W
Compare with Raspberry Pi 3B+
for reference only, Pi Zero is NOT included
Easy to Install
Zero can be easily attached via specially designed connectors
Interface Introduction
Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port
Note: The Ethernet port does not support PoE function
Compatible with Pi 3B Series HATs
The same GPIO header height as 3B, easily connecting with 3B series HATs
or development projects
for reference only, Pioneer600 and Pi Zero is NOT included.
Outline dimensions
Raspberry Pi 3B / 3B+ Alternative Solution
Selection Guide
Selection Guide
| PART NUMBER | GPIO | USB | Ethernet Port | Headphone Jack | CSI | HDMI | DSI | TF Card Slot |
|---|---|---|---|---|---|---|---|---|
| 3B/3B+ | 40PIN | 4-ch | 100M | √ | √ | √ | √ | √ |
| CM4-to-Pi3-Adapter | 40PIN | 4-ch | 1000M | √ | √ | √ | √ | √ |
| CM4-to-Pi3-Adapter-B | 40PIN | 4-ch | 1000M | √ | √ | √ | √ | √ |
| Zero-to-Pi3-Adapter (A) | 40PIN | 4-ch | 100M | - | - | √ | - | √* |
| Zero-to-Pi3-Adapter (B) | 40PIN | 4-ch | 100M | √ | - | √ | - | √ |
| * Indicates that will use the original interface of the Pi. | ||||||||
